PlantUML シーケンス図の簡単なサンプルを改めて書いておく。
マニュアルは、
plantuml.com
を参照

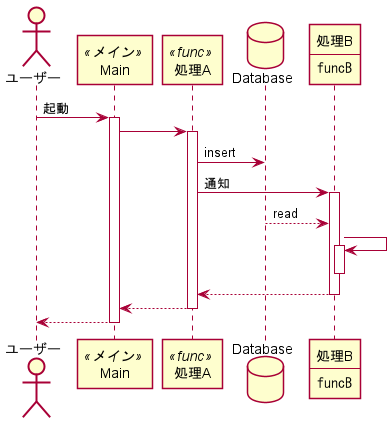

@startuml skin rose skinparam shadowing false actor ユーザー as user participant Main as main <<メイン>> participant 処理A as A <<func>> database Database as DB participant B [ 処理B ---- ""funcB"" ] user -> main :起動 activate main main -> A activate A A -> DB :insert A -> B:通知 activate B DB --> B : read B -> B activate B deactivate B B --> A deactivate B A --> main deactivate A main --> user deactivate main @enduml
